XiaoAn Security patrol robot Brief description

(Laser radar navigation version)

1.Appearance design

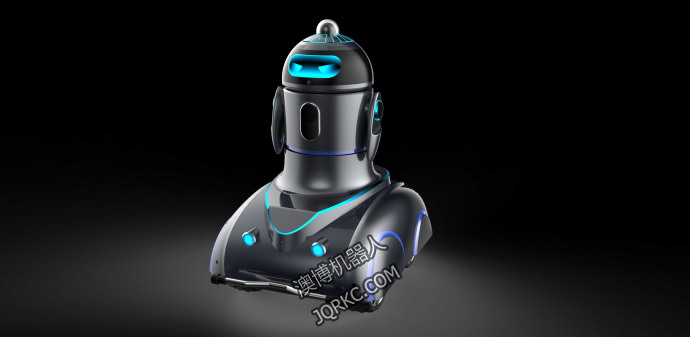

【1. Appearance sketch】

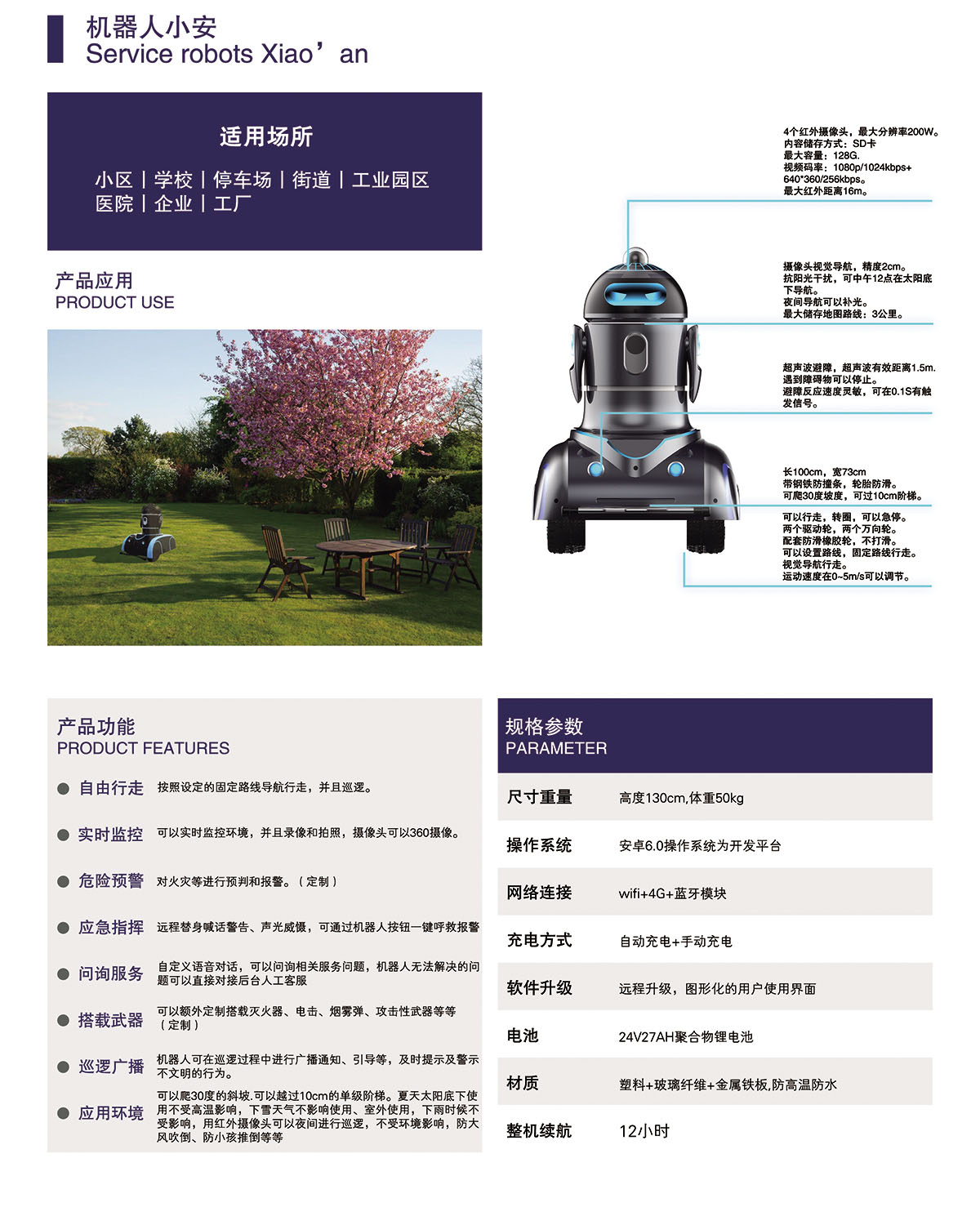

【2. Application scene photo】

2. Application scene

Application scene	Communities,schools, parking lots, streets, factories, hospitals, enterprises, industrial parks etc.
Functions overview	Reception, explanation, patrol, alarm, emergency treatment etc.
Custom scenario function steps	1、provide scenario requirements 2、consult if you can develop this feature 3、consulting development cycle 4、consulting development cost 5、Sign bespoke agreement 6、check and accept product function

3. Main function

	Function	Content
1	face identification	Face recognition, patrol, analysis and alarm.
2	walking free	It can set up the route walking patrol.
3	object identification	The object can be identified and analyzed to achieve the purpose of security patrol and alarm.
4	real time monitoring	It can monitor the environment in real time, and record and take photos. The camera can rotate 360 degrees.
5	business consulting	Customize the voice dialogue, support the construction of industry data model and mass knowledge base (to be customized), answer all kinds of business consulting problems, and continue to optimize learning intelligently.
6	automatic charging	It can be recharged automatically.
7	risk early warning	To the fire and other prejudgment and alarm, the illegal elements to conduct a police investigation.
8	leak filling	If the cover is lost, the light is broken, and there are obstacles on the road, an alarm will be given.
9	fun chatting	Through the cloud and voice interaction, can achieve fun chatting; support for everyone, children's voice, cartoon pronunciation.
10	arbitrary control	Through the APP, voice, remote control to achieve a variety of operations, publicity and promotion.
11	climbing	It can climb a 30-degree slope.
12	climb the stairs	Single step steps that can cross 10cm.
13	load	100kg
14	high temperature resistance	Use under the sun in summer is not affected by the heat
15	low temperature resistant	Snow weather does not affect the use.
16	watertightness	Outdoor use is not affected when it rains.
17	Carry weapons	It can be customized with fire extinguishers, electric shock, smoke bombs, assault weapons, and so on.
18	Use at night	Infrared cameras can be used to patrol at night, without environmental impact.
19	Ground operating environment	Flat land, grass, slope, simple steps, snow, simple potholes, mud, carpets, simple beaches, etc.
20	degree of safety	Prevent the wind from blowing down, children from pushing down, etc.

PS：The above functions are suitable for proper use, and the effect is better.

4. Technical parameters

Model of robot	XiaoAn
Base parameters
Height	110cm	Weight	50kg
Screen	10．1 inch，Hd color LCD screen	Screen type	10 touch screen, capacitance
Screen resolution(dpi)	1920*1080 FULLHD	Camera	Five million pixel
Size(mm)	217*136 mm	Batteries and specifications	Polymer lithium battery 24V12AH
Move mode	Wheeled, forward, backward and turning	Chassis structure	Square steel frame with two drives
Microphone	Four mic arrays, reduce noise	Loudspeaker	Dual speaker
Internet Connections	WIFI	Support bluetooth	Yes
Charging time（h）	≤8h（normal 6h）	Working time（h）	≥10h
Rated input voltage (V)	220VAC	Rated output voltage (V)	24VDC
The distance of the human sensor to the guest	4～5m	Ultrasonic distance	1～2m
Rated output current (A)	2A	Rated power (W)	48W
The chassis size	length 100cm，width 73cm	collision avoidance	Steel collision avoidance
Chassis drive wheel diameter	32cm	Nature of the wheel	inflatable wheel
Control parameter
Remote control walking	Control the walking of the robot from front to back through mobile APP and remote control;Response time is less than 100ms	Visual navigation walking	The robot creates a flat map, either indoors or outdoors
Navigation route	Multiple target points and walking routes can be set	Navigation accuracy	2cm
Anti-interference performance	Free from the sun's rays	Night interference	Use infrared camera to avoid night interference
Speed of navigation	Speed 2 or 3 meters per second(can adjust)	Visual navigation range	It has to do with the scan pattern, it can be tens of thousands of squares
Safety function
Emergency cut-off	To press the key to stop the working robot immediately	Detection of obstacle avoidance	Real-time monitoring of obstacles in front of the robot, measuring distance of 80 cm
Pedestrian detection	Real-time monitoring of no one passing by, someone coming to say hello	Balance protection	Body weight can be balanced and the waist won't fall
Convenience function
Remote voice play	Remote control robot plays audio file, audio file can be edited through text to audio software, easy to play the client propaganda voice	Remote operation mode switch	Robot remote control or tracking mode can be selected through mobile APP and remote control
Remote control adjustment parameters	Computer control design sensor distance, walking speed	Set the node number	Computer control to set the node number
Remote software upgrade	When the software is upgraded, the system automatically downloads the upgrade package, prompting the user to upgrade	Ultrasonic parameter	Forward two,left and right two, adjust and control respectively
Multimedia parameter
Text	formal：xml	Video frequency	format：mp3 frequency range: 32kbps-320kps
Attachments
The standard of service	Instruction, warranty card, prompt label, daily maintenance	The standard packing	Pearl cotton, wooden case
The standard accessories	1 remote controller, 1 charger and 1 automatic charging pile	The standard tool	1 set of inner hexagon tool wrench and 1 set of outer hexagon tool wrench

5. Product configuration

Model number	Standard configuration	Optional
XiaoAn	1 remote control, 1 charger, 1 automatic charging pile, 1 set of hex tool wrench, 1 set of hex tool wrench and 1 wooden box.	Flight case
